I would modify that Manley set up a bit more and add a secondary chain on each side. You might as well make oit so you can use it and not have legal problems if you want to do a private tow.


Thu Jan 23, 2020 8:38 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Downtown Newcastle
Joined: Sat Mar 5, 2016
Posts: 2169
Real Name: Traut
Great work. I appreciate the way you lay things out and adjust on the fly when inevitable "stuff" pops up. I really look forward to these updates :thumbsup2: .

_________________
I always thought growing old would take a lot longer.....

So, when does that "Old enough to know better" shit kick in???
I've learned that pleasing everyone is impossible, but pissing everyone off is a piece of cake.


Thu Jan 23, 2020 9:05 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3528
hartcreek wrote:
I would modify that Manley set up a bit more and add a secondary chain on each side. You might as well make oit so you can use it and not have legal problems if you want to do a private tow.

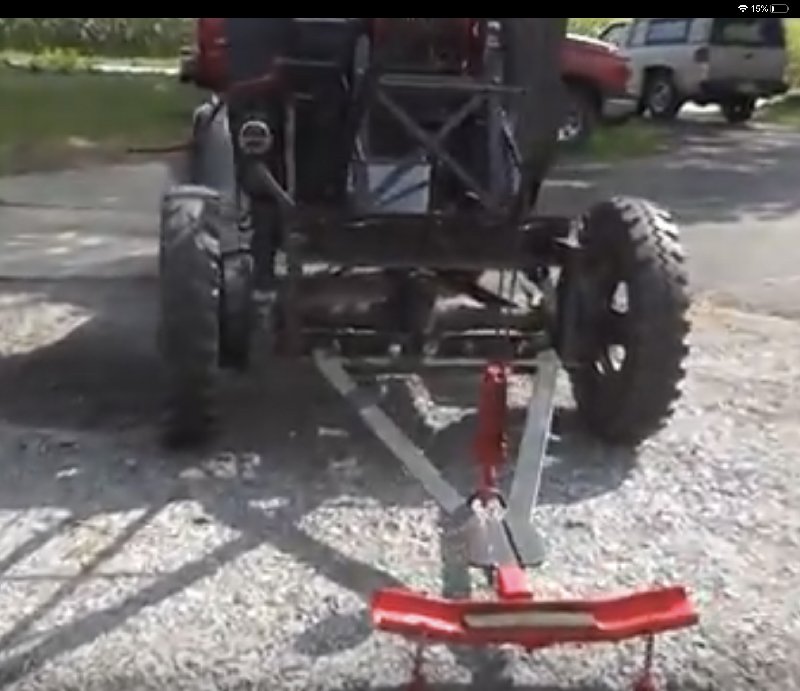

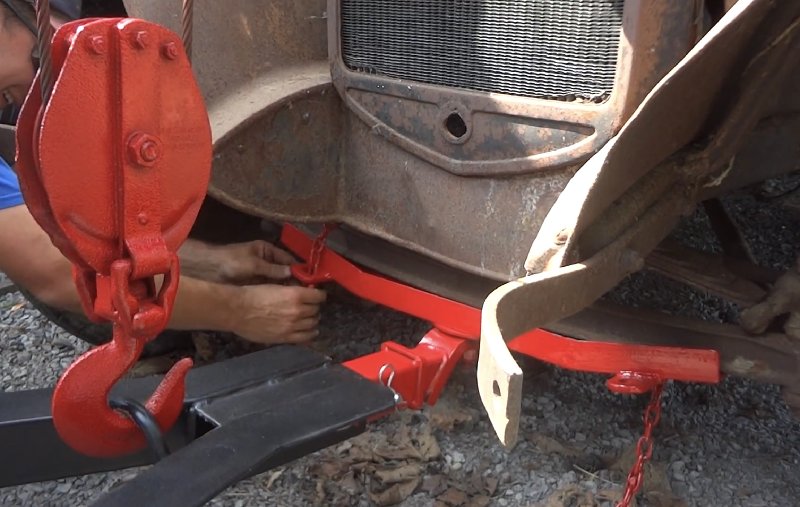

That’s a good thought! haven’t got this far yet, but the old time tow trucks had a draw bar setup that was a rigid connection between the tow truck and the disabled car. That draw bar clamped around the front axle of the disabled car with a couple of chains. The other end connected to the tow truck. This kept the disabled car from running into the tow truck during braking. The tow truck hook actually attached to this draw bar, and then lifted the draw bar and disabled car up together One version of a draw bar looked like this



Here is a different design


I haven’t designed my version yet, so stay tuned!


Thu Jan 23, 2020 9:49 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3528
Traut wrote:
Great work. I appreciate the way you lay things out and adjust on the fly when inevitable "stuff" pops up. I really look forward to these updates :thumbsup2: .

Thank you Traut! I will continue to chip away at it!


Thu Jan 23, 2020 9:53 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3528

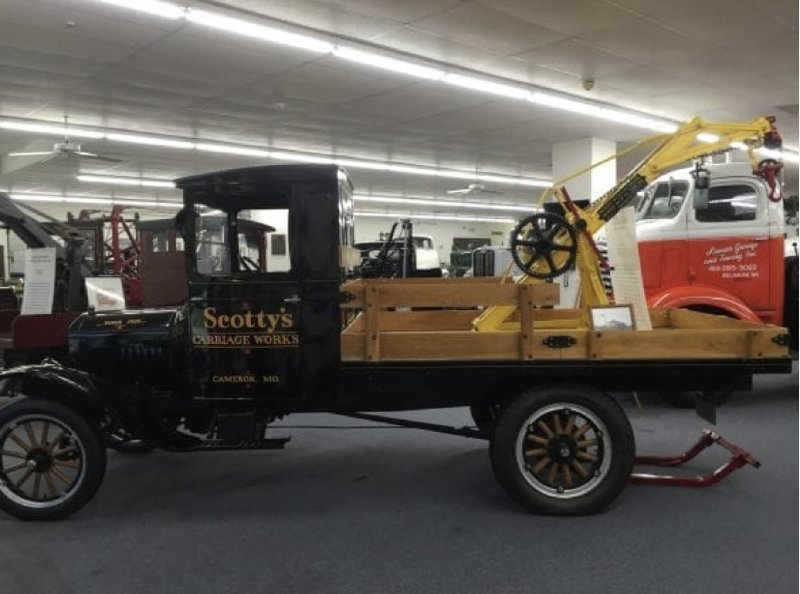

The boom extension houses 2 of the 3 pulleys. It is comprised of horizontal reaches, angled reaches and pulley plates. It is the triangular assembly at the end of the main boom in the pic below

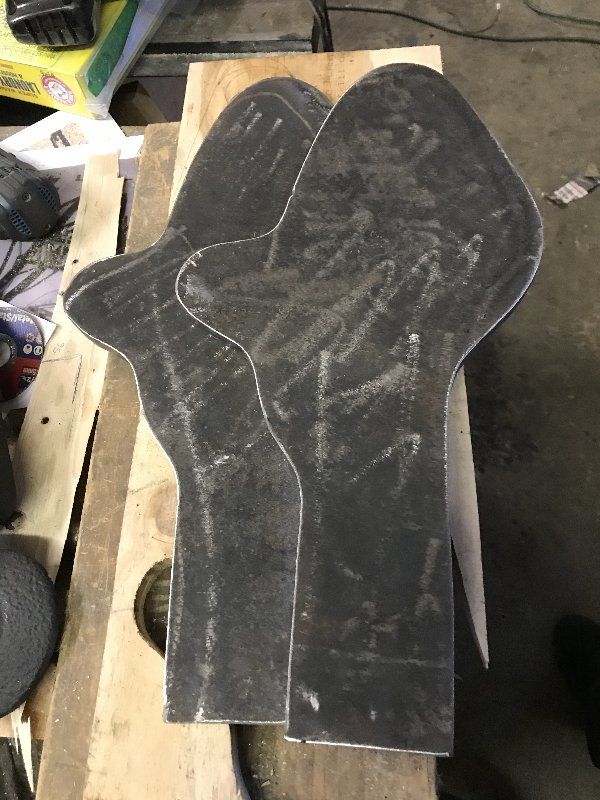

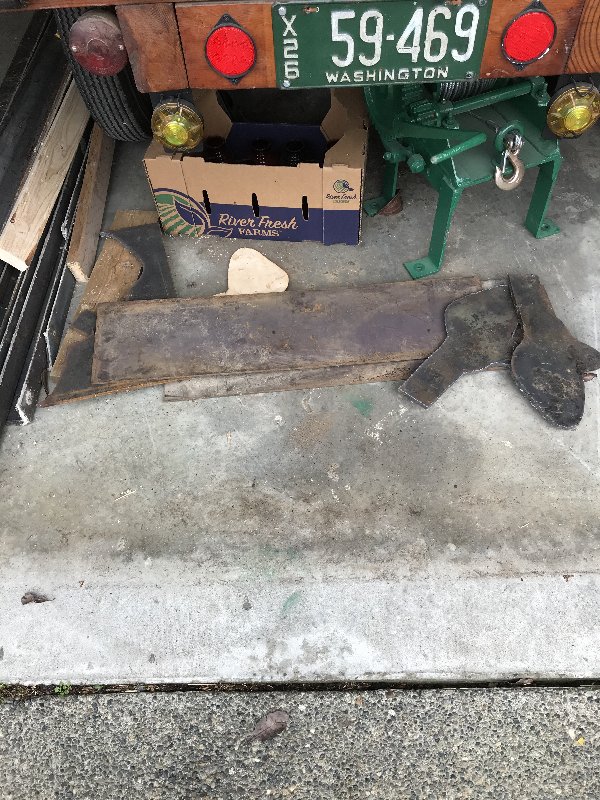

The pulley plates were cut from a 2’ x 2’ piece of half-inch plate I scored on offerup for $30. A buddy did the rough cut for me on his plasma cutter. Man, I got to get one of those! Here are the as-cut pieces

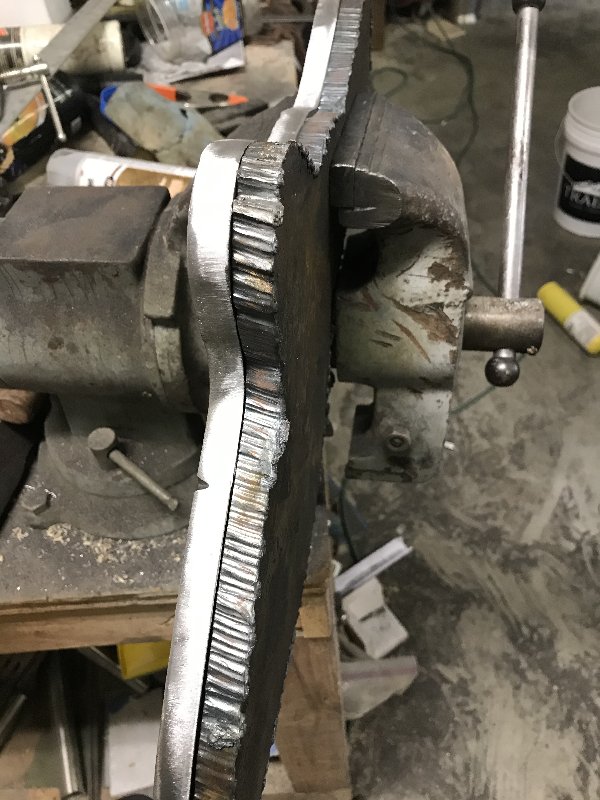

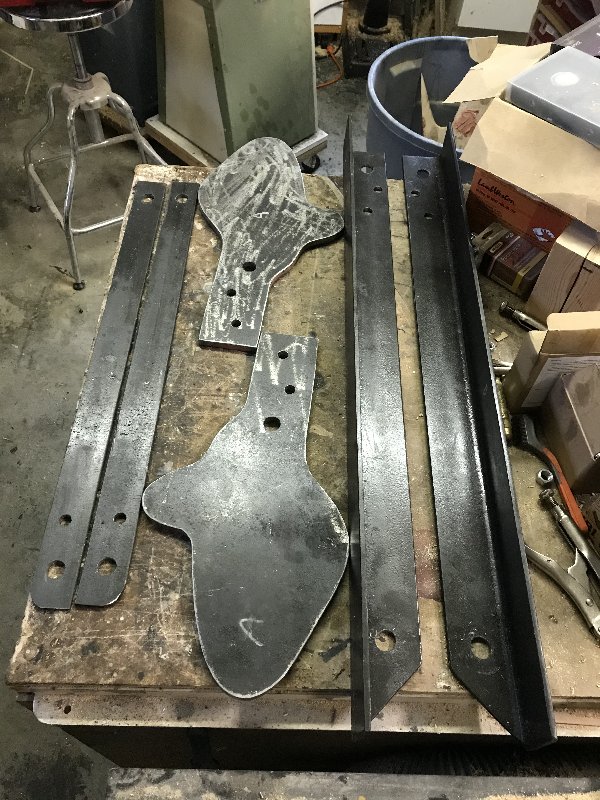

The edges needed a lot of grinding.


Went at it with the bench grinder and angle grinder until I had them smoothed out

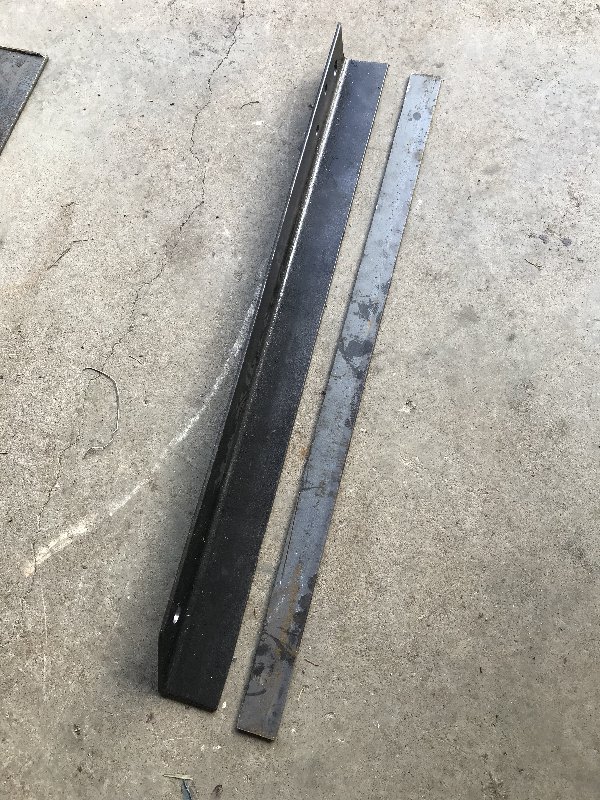

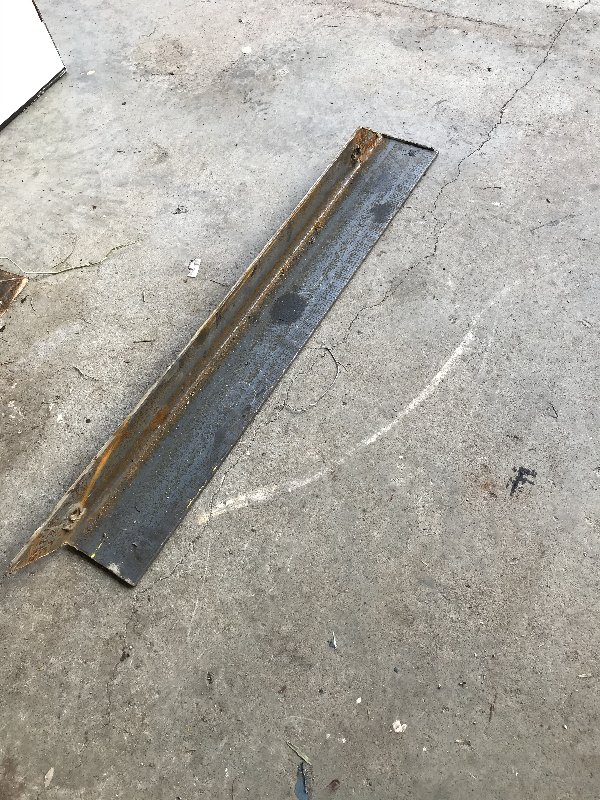

Next job was the horizontal reaches. I had to cut down my huge pile of 3 x 5 angle to get a couple of pieces 3 x 3.



The offcuts I used for the angled reaches

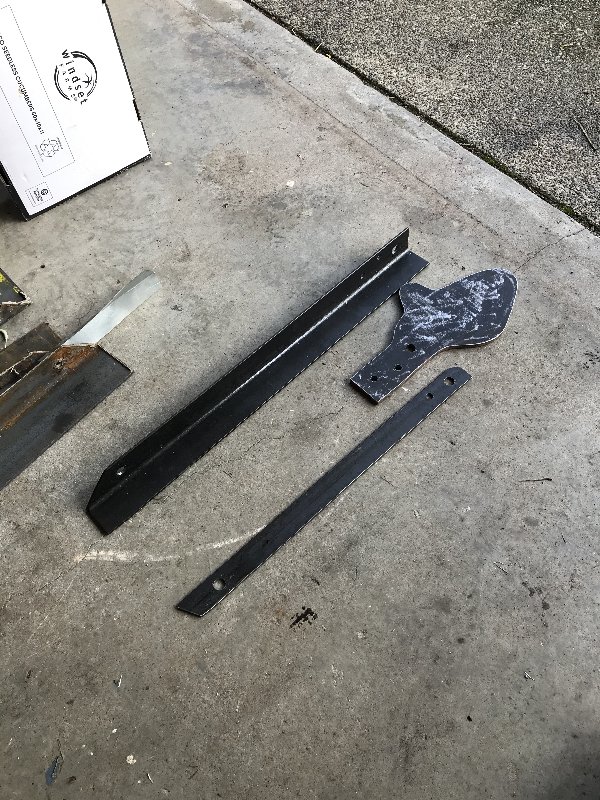

After match drilling the left and right sides of plates and reaches, here is what I had

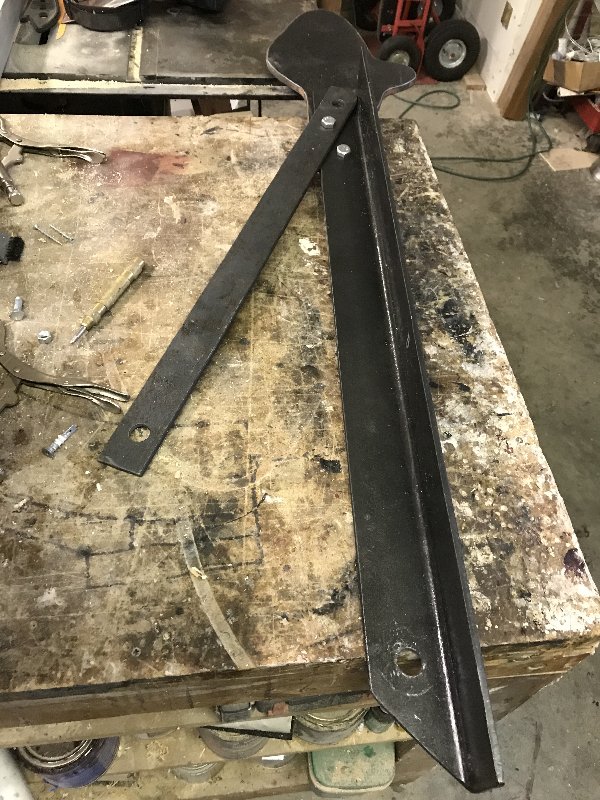

Then it was time for assembly

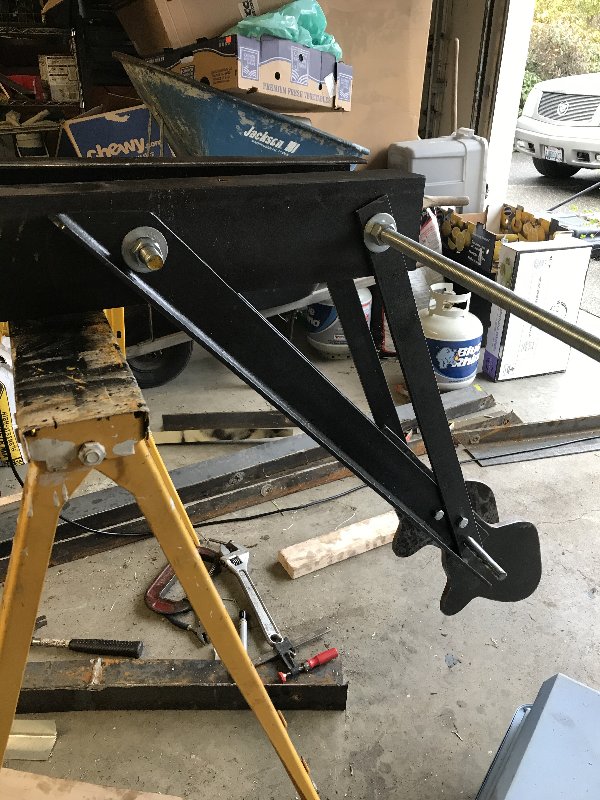

And hanging it on the main boom
