Traut wrote:
Fascinating. I've used block and tackle arrangements all my life, logging, boating, material transfer, construction, etc, mainly getting my trucks unstuck. It's all PFM and a thing of beauty to me every time I see it in action. Being a lazy slob, I can't ever get enough of energy saving tech.

So Professor, for a given pulley arrangement, does "pulling" on the moving pulley always yield an increased advantage, as opposed to pulling on the fixed component? I'd be tempted to ask why, but the answer might make my head explode.

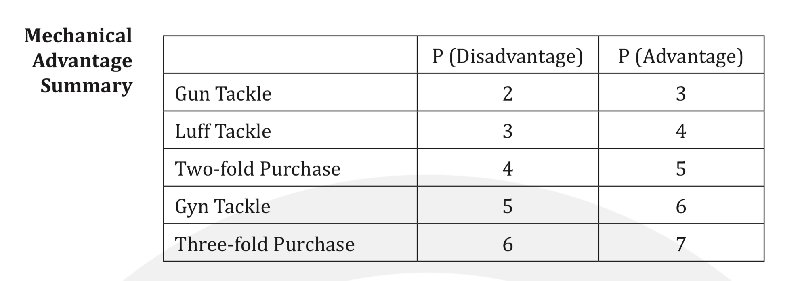

Yes. You get a +1 mechanical advantage when you haul on the moving pulley, vs the stationary pulley, no matter which type of tackle you use.


And no way am I a professor. I knew next to nothing before I started to research all this stuff for the tow boom project. I think of it this way: the suspended load is being held up by a pulley threaded with a number of lines. Each line takes an equal portion of the load. If you are lifting 100 lbs with a luff tackle in rove disadvantage, that configuration has 3 lines reeved to the moving pulley, and each line is taking on 33.3 lbs. So the line you are hauling on takes 33.3 lbs to move the load (MA=3). If you thread the lines so you are luff tackle rove advantage, that configuration has 4 lines reeved to the moving pulley. Each line bears 25 lbs now, and you only have to haul 25 lbs to move the 100 lb load (MA=4). Of course you have to pull 4 feet of line to get one foot of lift with a MA=4, so increasing MA means you need to pull increasing amounts of line for the same amount of lift.

Now I have started collecting vintage pulleys, just because they are cool.


Last edited by Arisaka on Thu Feb 13, 2020 3:23 pm, edited 2 times in total.



Thu Feb 13, 2020 2:03 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Downtown Newcastle
Joined: Sat Mar 5, 2016
Posts: 1907
Real Name: Traut
Once again you've demystified something I've suspected a long time. Makes perfect sense the way you explain it, Sensei. Wax on, whacks off. Simple! :bigsmile: thanks.

_________________
I always thought growing old would take a lot longer.....

So, when does that "Old enough to know better" shit kick in???
I've learned that pleasing everyone is impossible, but pissing everyone off is a piece of cake.


Thu Feb 13, 2020 2:54 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3478
Most of the structure is done, so it’s time to mount the winch and pulleys. I started with the pulleys. The boom has three pulleys. The first one just redirects the angle of pull, while the other two are part of the lifting tackle. The first pulley is mounted at the tip of the main boom. The pulley is 8 inches OD and 2 inches ID. My Model T buddy turned me reducing spacers with a 3/4” center hole, so I could use a 3/4” grade 5 bolt for the pulley axle. Here is that first pulley.


The other two pulleys are mounted in the boom extension. The one at the tip is a duplicate of the first pulley, with the same reducing spacer. The second pulley is smaller, at 4 1/2 inches OD and 5/8” ID. I used 3/4” and 5/8” grade 5 bolts for the two pulley axles. Here they are

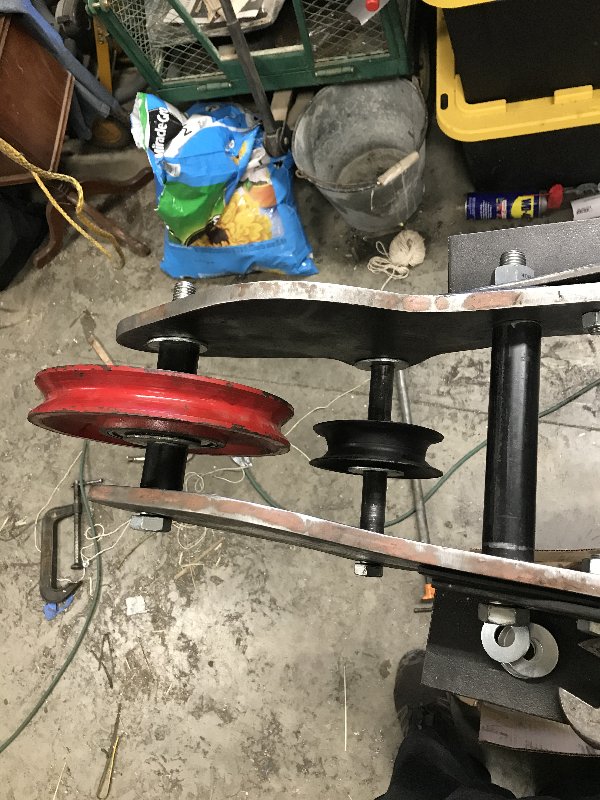

Here is a look at the pulley assembly

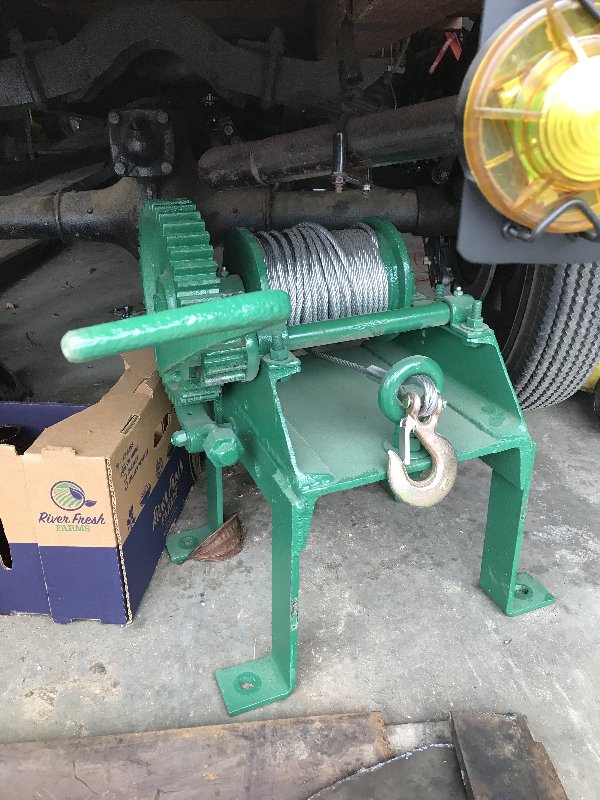

The winch was next. First job was to cut off the 4 legs welded to the winch


Then the winch was located in the boom so that when the boom is loaded in the truck bed, the winch handle would clear the 17” high sides of the truck bed. This is necessary because I will be extending the winch handle by 3 feet, so it can be operated from outside the truck. This is how it was done back in the day.

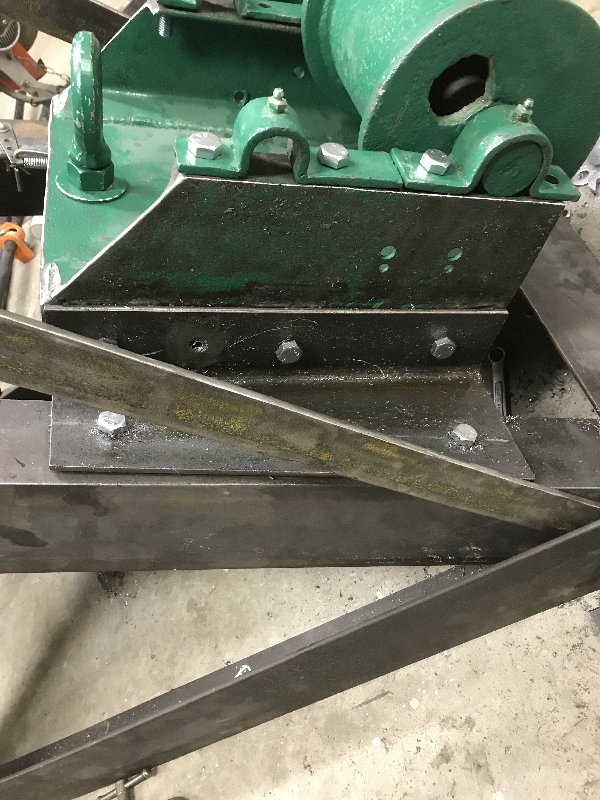

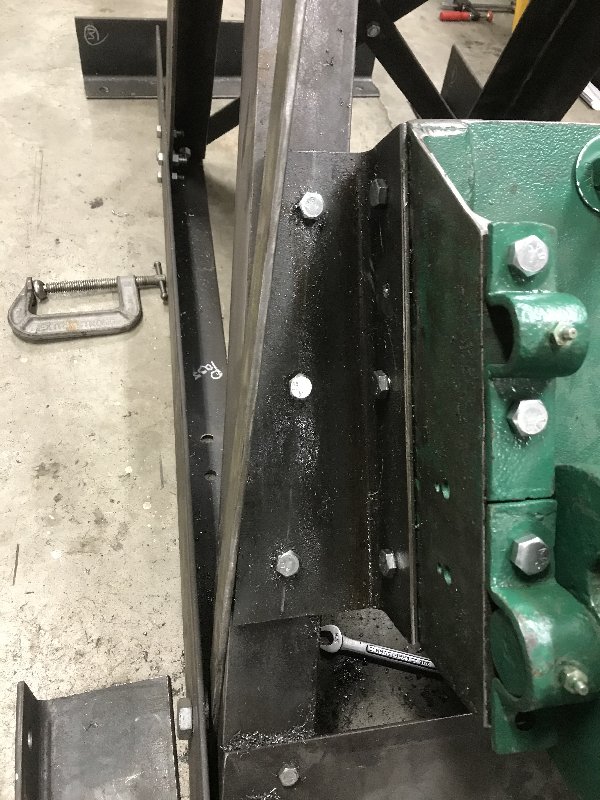

I fabricated some mounts for the winch from some angle iron. Here are a couple of pics



Half inch bolts are used to attach the winch to the boom


I needed to move the pawl location, as it’s original location interfered with the boom arm. The pawl is basically a brake. It’s an arm that projects into the spool gear teeth, preventing spool from unwinding. The pawl is rotated to disengage the spool gear teeth, so a load can be lowered. I had to fabricate a mounting bracket to hold the pawl.

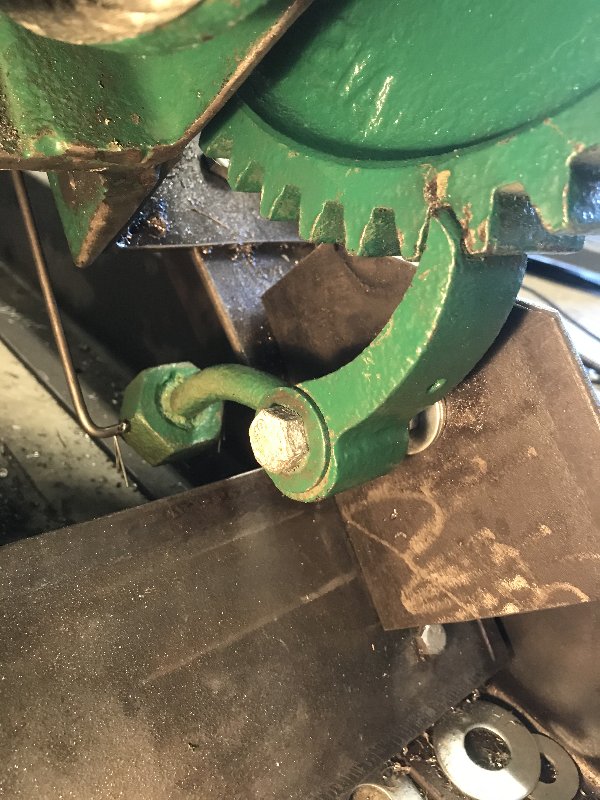

You can see the pawl in the background of the previous pic, but here are some more pics

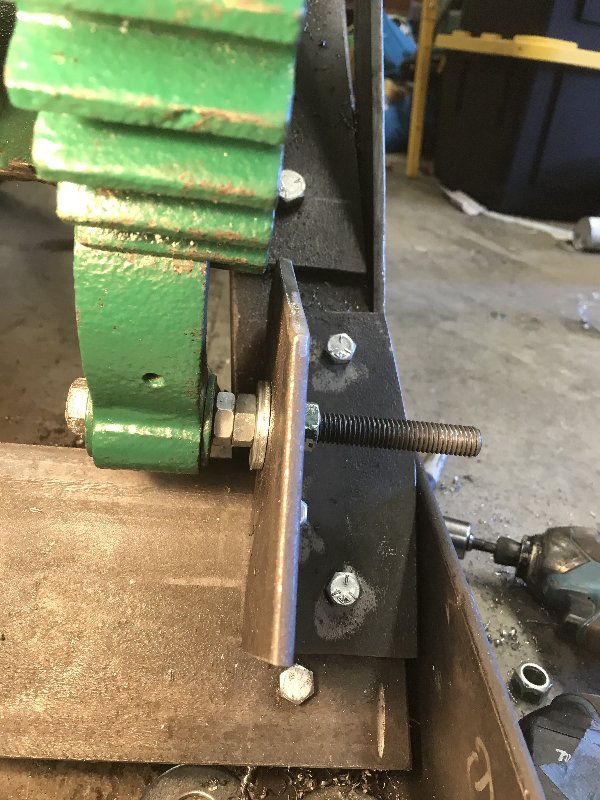

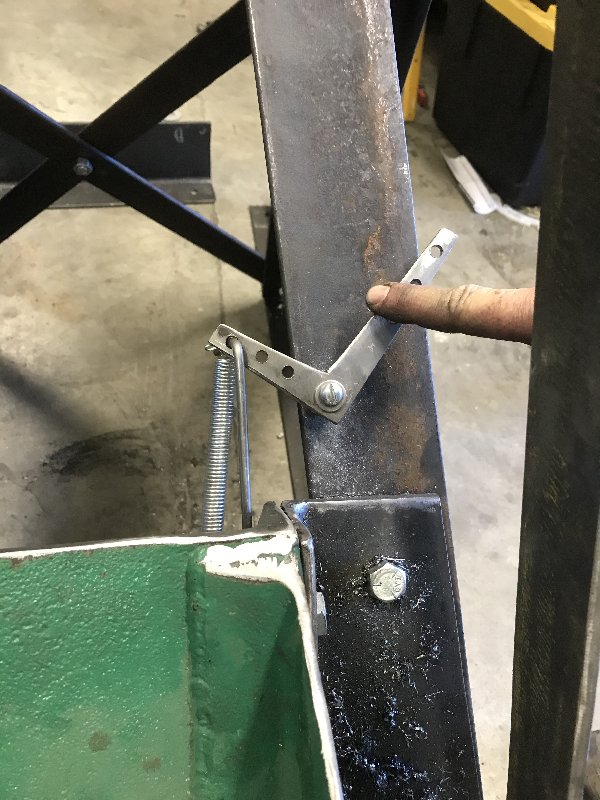

It is necessary to be able to release the pawl from outside the truck, so you can lower a load. To do that I needed some method to release the pawl from a distance of 3 feet away. Additionally, releasing the pawl requires that it be pulled in a rearward direction. However, I wanted to pull from the side of the truck, not the rear. There are many ways to redirect direction of pull. Pulleys and cables are commonly used. But I wanted a positive linkage that would push the pawl closed as well as pull it open. To do this I chose to make a simple bell crank. A bell crank is an L-shaped arm, with holes for linkages. When you pull on one leg of the bell crank, it exerts a pull 90 degrees to your pull.


The other end of the linkage goes to the back of the pawl

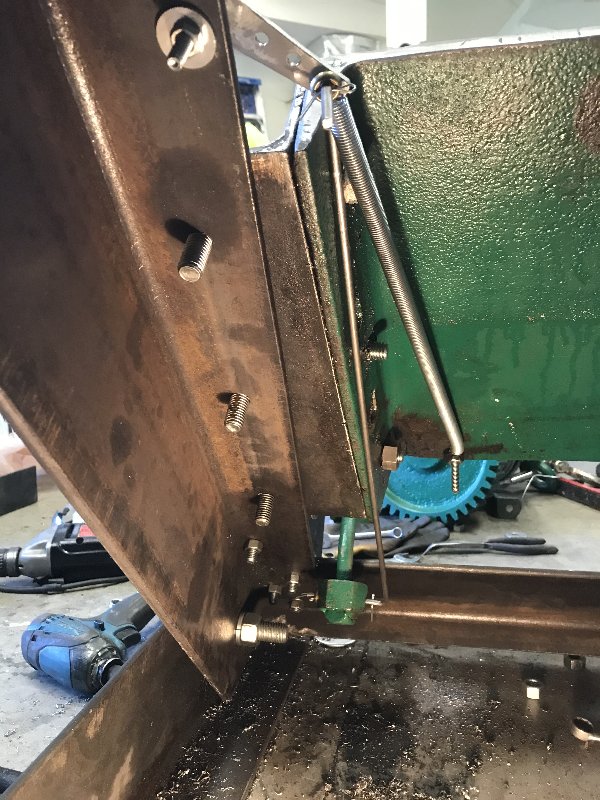

The pawl is gravity-activated to close, but I decided to add a spring to help draw it closed.


A couple of more pics



Next up is taking the whole thing apart and painting it. Then I have to reinforce the truck bed, mount the cradle frame, and drop in the boom. Then I can get to the extended winch handle, and finish the pawl linkage from the bell crank to the side of the truck


Wed Feb 19, 2020 6:32 pm
Profile
User avatar

Location: Snohomish Co
Joined: Thu Sep 13, 2018
Posts: 179
If you want to make a matching trailer there was a ford marked TT bed(i believe, i'm not too up on flatbeds) on craigslist for $100?ish. I didnt see it today so mabey it sold. I wanted it, but i have too many irons in the fire and didnt want to drive that far.

Also, I'm looking to get intimate with some pre '26 t roadster bodies using a tape measure, preferably in the north end. If you can direct me to anyone, i'd appreciate it. I picked up what appears to be mid 20's mutt/transitional body(Late sides, low cowl) and need to fab up a wood kit, it'll be v8-60 powered with a model a quickchange rear and model a axle up front, using a pair of t wishbones bent into hairpins. All pre 1950 stuff.


Sun Feb 23, 2020 12:03 am
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3478
Sent you a PM Shaggy


Sun Feb 23, 2020 8:37 am
Profile
User avatar

Location: Union Gap
Joined: Sun Mar 27, 2016
Posts: 942
Real Name: Randall Knapp
Why not make a ratchet handle for the cable wench?


Sun Feb 23, 2020 9:16 am
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3478
The tow boom is all disassembled and painted. While that is drying I started reinforcing the truck bed. The bed is supported by two lengthwise 4x6s, and decked with tongue and groove 2x6. Because of the weight of the boom, and the loads exerted by lifting and towing a disabled Model T, I wanted to reinforce the 4x6s. To do this, I cut two 6’ lengths of angle iron, and drilled them for 1/2” bolts, that would pass through the angle and the 4x6s.


After painting them, I wrestled them into place alongside each 4x6. Then I cross drilled the 4x6s in 4 places to bolt up the angle iron. I had some salvaged 1/2 inch bolts from an old project, but the threads were in pretty rough shape

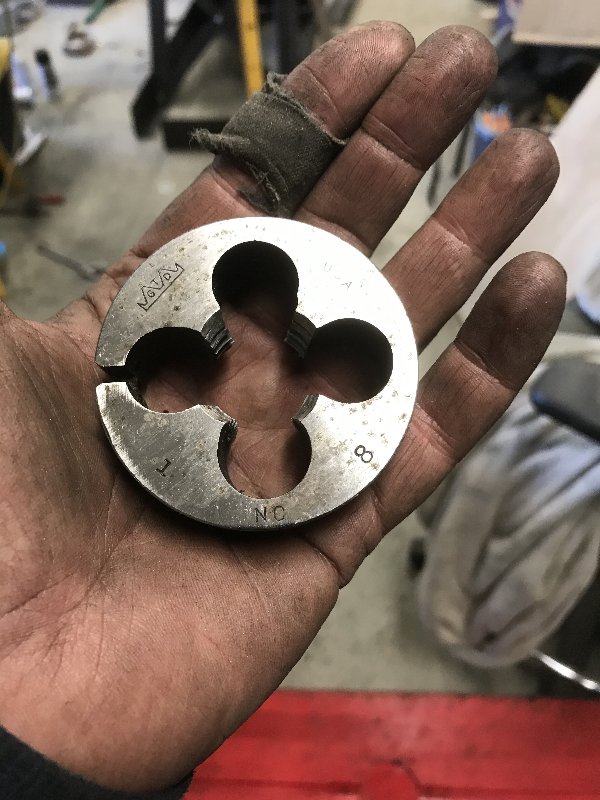

Each bolt got wire brushed, and I ran a die down each one

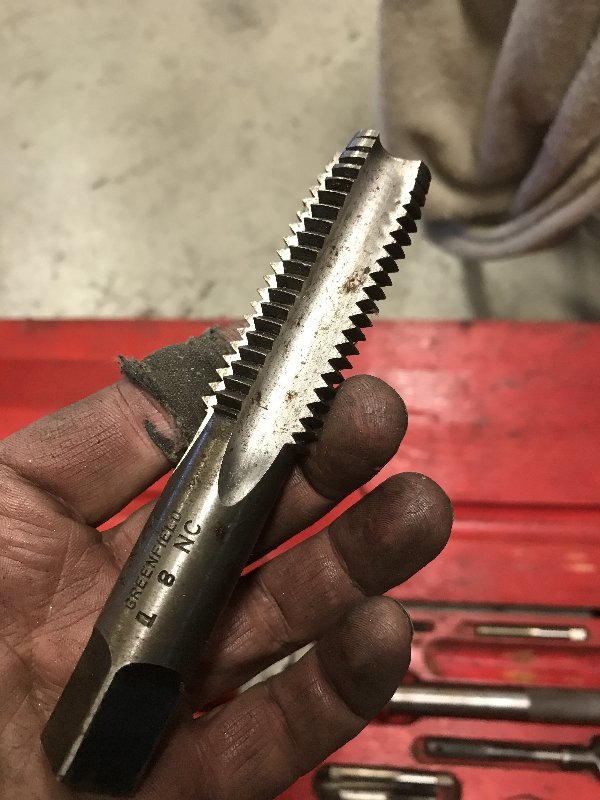

This gave me a chance to use a large tap and die set I inherited from my dad. It has taps and dies up to one inch. Dad was the last person to use this set. It’s been sitting in my garage for 15 years and I’ve never used it.

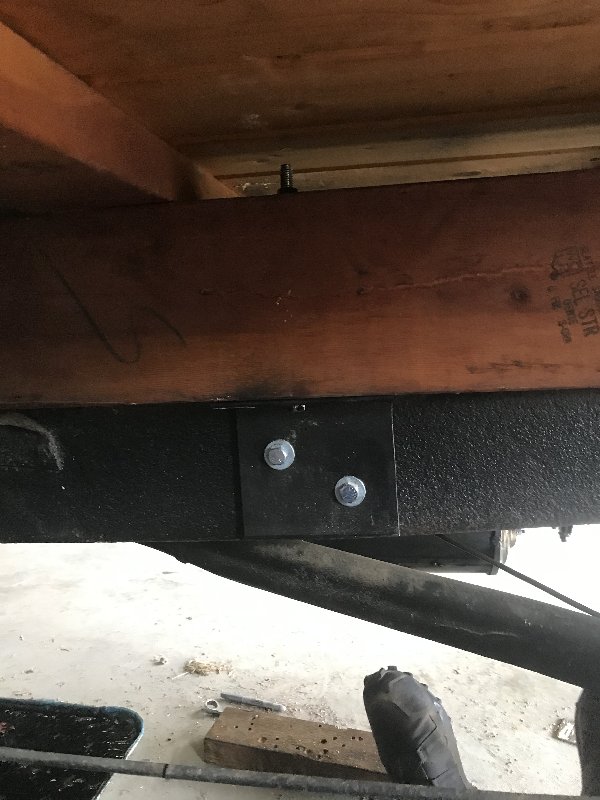

Here is one side all bolted up.

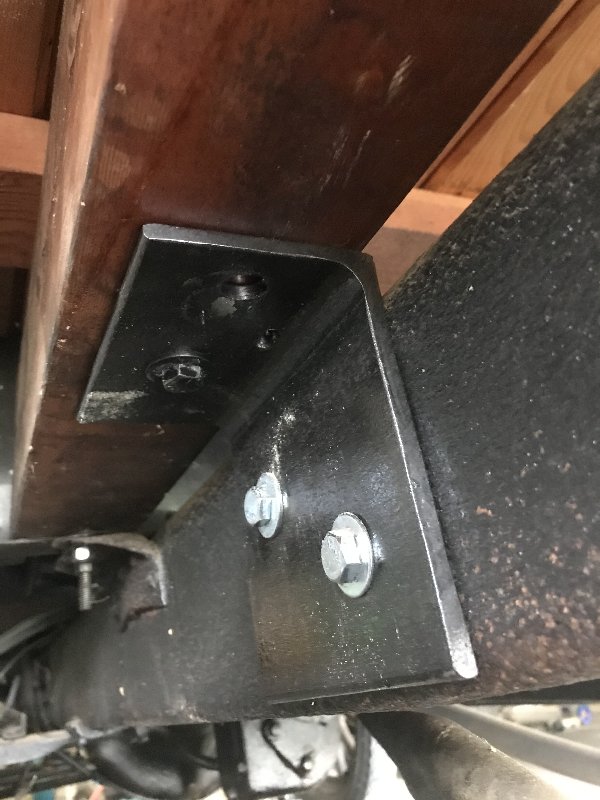

After I got both sides done, I took a look at how the bed was attached to the truck frame. That amounted to two 1/4 bolts on each side. That isn’t enough. I decided to beef that up with an additional two mounts per side. I made some mounts from 4” lengths of angle and bolted them to the truck frame.


The 4x6s were drilled vertically, and 7-inch bolts were run through each mount and 4x6, and bolted

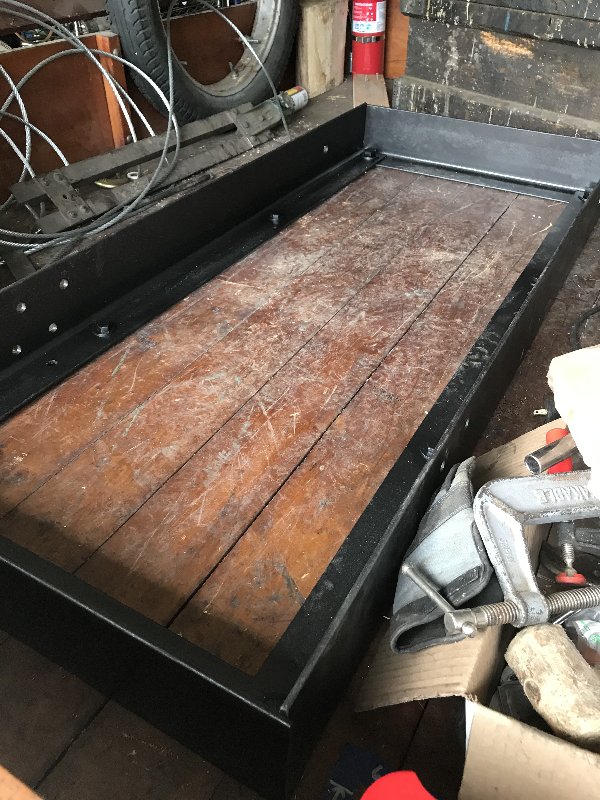

Now it was time to crawl out from under the truck and bolt down the boom frame in the bed. Each corner of the frame got 3/4” bolts down through the bed and through the angle iron reinforcing members beneath. Along the long arms of the frame I added 2 1/2” bolts per side





Tomorrow I will assemble the tow boom. Thursday, RocketScott is coming by with his boom truck to lift the tow boom into the back of my old truck. I will capture and post video of that!


Tue Feb 25, 2020 4:52 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Fri Jan 16, 2015
Posts: 5573
Gonna be sweet!

_________________
You may be right, I may be crazy, but it just may be a lunatic you're looking for


Tue Feb 25, 2020 6:36 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Duvall
Joined: Sun Jan 6, 2013
Posts: 18602
Real Name: Paco X
You had me at "wood". :thumbsup2: :wagwoot: :bow:

_________________
“Individual liberty and freedom are not outmoded concepts”
I am a gun owner. I am stereotyped.


Tue Feb 25, 2020 6:45 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Downtown Newcastle
Joined: Sat Mar 5, 2016
Posts: 1907
Real Name: Traut
Is there a dual axle and overload springs available for those trucks? :bigsmile: Seems like the weight is starting to add up, which also makes me wonder about the brakes. You're probably on top of that. :bow: How much weight do you think you've added?

_________________
I always thought growing old would take a lot longer.....

So, when does that "Old enough to know better" shit kick in???
I've learned that pleasing everyone is impossible, but pissing everyone off is a piece of cake.


Tue Feb 25, 2020 7:30 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 3478
Traut wrote:
Is there a dual axle and overload springs available for those trucks? :bigsmile: Seems like the weight is starting to add up, which also makes me wonder about the brakes. You're probably on top of that. :bow: How much weight do you think you've added?

I expect it will be around 400-500 lbs when all is said and done, But it’s a 1 ton truck, so that shouldn’t be an issue. And you are right about needing better brakes when the weight goes up. Last year I put hydraulic disc brakes on the back axle. They work very well and lock up both tires on blacktop. The limiting factor is a small contact patch with 4.5” tires. On the upside, I really can’t get this old girl much above than 25 mph, and she is much happier at 20.


Tue Feb 25, 2020 8:51 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Fri Jan 16, 2015
Posts: 5573
We’ll go slow lowering it on. Just to be safe

With all the pictures of the same/similar setup I can’t see how it would be a problem


Sent from my iPhone using Tapatalk

_________________
You may be right, I may be crazy, but it just may be a lunatic you're looking for


Tue Feb 25, 2020 9:52 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Downtown Newcastle
Joined: Sat Mar 5, 2016
Posts: 1907
Real Name: Traut
I didn't realize it was a 1 ton rated vehicle. Should be fine. I've just seen a lot of projects go sideways due to adding a little accessory here and there until a rig's capacity gets compromised or at least the handling characteristics changed enough to surprise the operator. In this case my comment was made in semi jest. Arisaka is running a tight ship. As I watch the project progress I'm always impressed with the creativity and workmanship, but one of the main things that is always in the back of my mind, and I'm sure is ever present while the work is going on, is what a remarkable tribute the project is to Arisaka's Dad. You can always tell the subtle differences in endeavors that are labors of love. Pop would be mighty proud.
